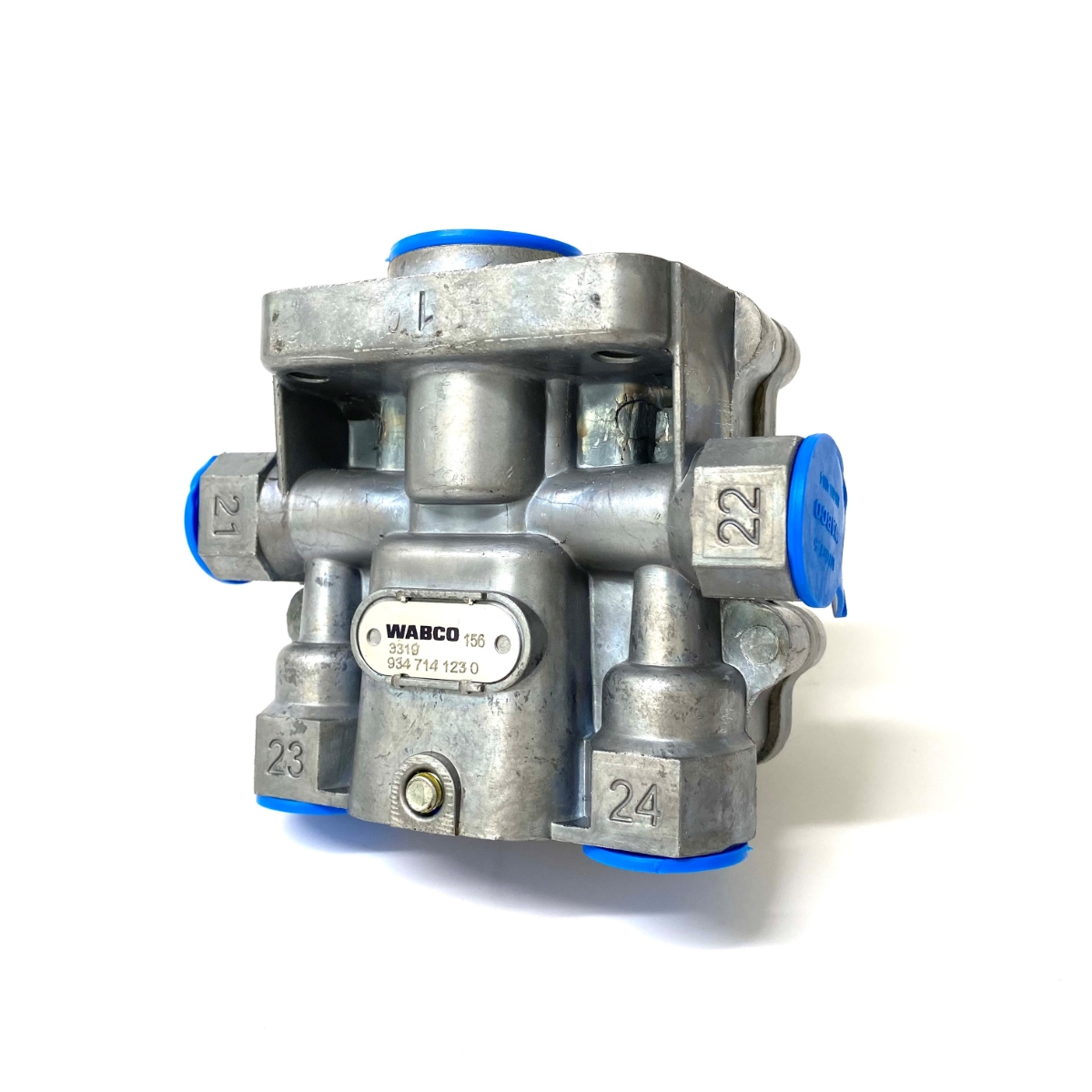

Quad Protection Valve
Charging pressure: 3.6 bar
Closing pressure dynamic 21: 5.0 bar
Closing pressure dynamic 22: 5.0 bar
Closing pressure dynamic 23: 5.0 bar
Closing pressure dynamic 24: 5.0 bar
Max. operating pressure: 13.0 bar
Opening pressure 21: 6.9 bar
Opening pressure 22: 6.9 bar
Opening pressure 23: 7.2 bar
Opening pressure 24: 7.2 bar
Opening pressure circuit 1+2: 8.5 + 8.0 bar
Port thread 1: M22 x 1.5
Port thread 21: M16 x 1.5
Port thread 22: M16 x 1.5
Port thread 23: M16 x 1.5
Port thread 24: M16 x 1.5
Port thread 4: M16 x 1.5
Pressure sensor: No
Type: dynamic
