9254811500

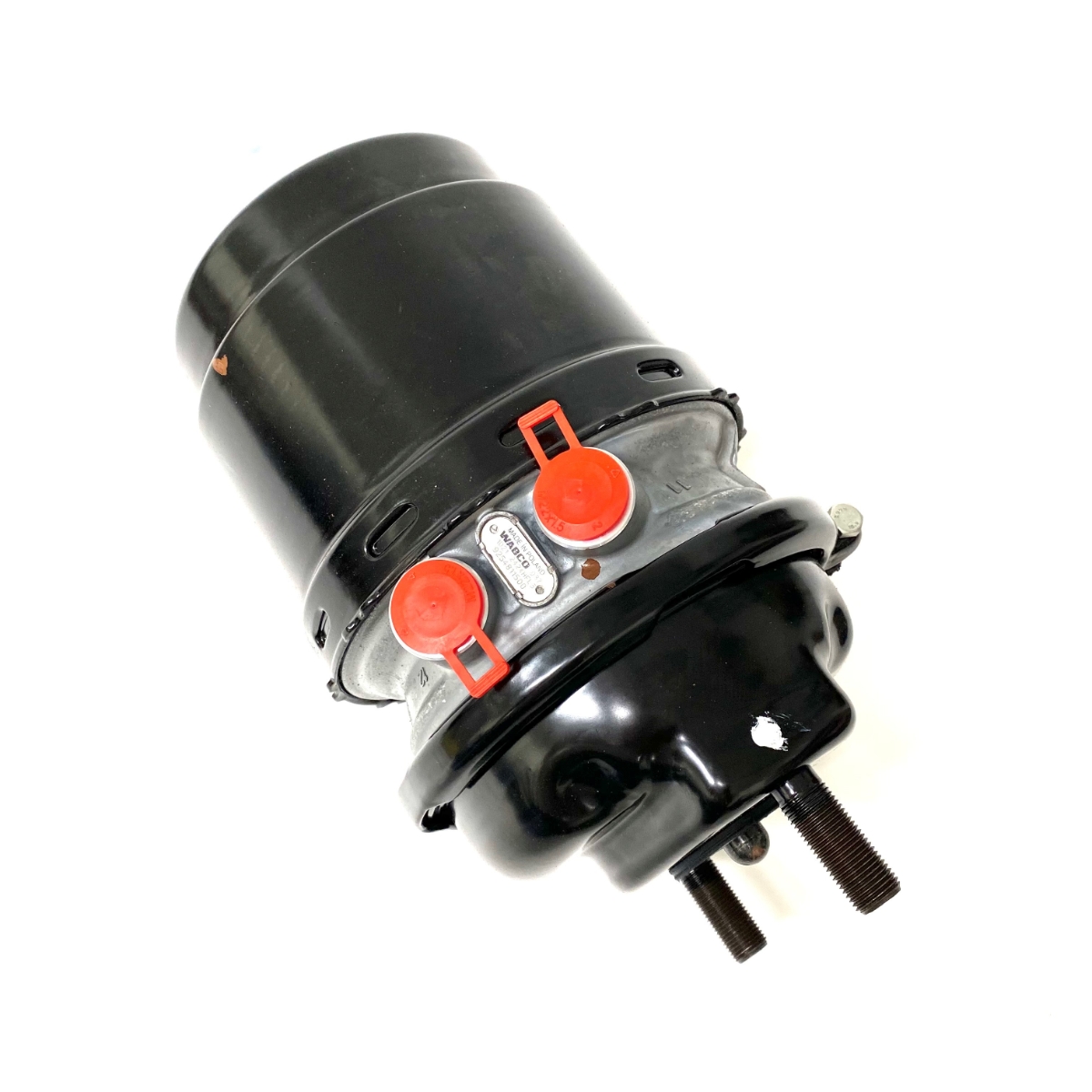

Tristop Cylinder 24/24

Stock Code: WA-9254811500

£190.00 ex VAT
1 In Stock

Tristop Cylinder 24/24
Bolt lengths: 43.0 mm
Bolt threads: M16 x 1.5
Distance between bolts: 120.6 mm
Max. operating pressure: 10.2/8.5 bar
Opposite: 925 481 151 0
Output force M: 11950 N
Port thread 11: M22 x 1.5 JED - 388
Port thread 12: M22 x 1.5 JED - 388
Port threads: M22 x 1.5
Push-rod length: 15 mm
Push-rod thread: Ball R8
Release pressure: 6.1 bar
Return-spring force: 220 N
Stroke: 64/64 mm
Total length: 292.0 mm
Type: 24/24
Type of operation: Disc
